Description
MiCWL High Power 6400W Digital Power Amplifier 4 Channel
Can Drive 800W Speaker Each Channel DJ Karaoke Stage Studio AMP
2 Power Versions for your choose :
Type 1 ( 800W RMS each channel) :
4 Channel Power Amplifier: (6400W)
6400 Watts @ 4 Ohms ( 1600W+1600W+1600W+1600W )
3200 Watts @ 8 Ohms RMS ( 800W+800W+800W+800W )
Type 2 (650W RMS each channel) :
4 Channel Power Amplifier: (5200W)
5200 Watts @ 4 Ohms ( 1300W + 1300W + 1300W + 1300W)
2600 Watts @ 8 Ohms RMS ( 650W + 650W + 650W + 650W )
19" 1U Professional Power Amplifier Design
ATR (Accelerated Transient Response) technology for ultimate punch and clarity
MSRP: $999.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
MICWL D6400 is a Professional 4 Channel Digital Power Amplifier that was developed using the expertise of professional sound engineers,
working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with the D6400 awesome performance,
flexibility and crystal clear sound quality.
Type 1 ( 800W each channel) :
4 Channel Power Amplifier: (6400W)
6400 Watts @ 4 Ohms ( 1600W+1600W+1600W+1600W )
3200 Watts @ 8 Ohms RMS ( 800W+800W+800W+800W )
Type 2 (650W each channel) :
4 Channel Power Amplifier: (5200W)
5200 Watts @ 4 Ohms ( 1300W + 1300W + 1300W + 1300W)
2600 Watts @ 8 Ohms RMS ( 650W + 650W + 650W + 650W )
1. MiCWL D6400 Digital Power Amplifier and other Commercial prodcuts integrated solutions for large shopping malls, conference hassls, transportation hubs and so on.
2. Use the world's most advanced efficient switching power supply (SMPS) and Class D power amplifier (CLASS D) design.
3. Patented design of high quality porous heat sink, in harsh environments can be normal in low temperature operation
4. adopts the imported teflon wire, ensure the transformer can normally work efficeently at high temperature.
5. Built in Digital audio processor function.
6. With volume switch,Adjustable volume
7. Full set of protection functions to ensure that the product normally working
8.With Combined signal function,Multiple amplifiers can be connected in parallel to drive multiple speakers.
PARAMETER:
Input Voltage: AC220~240V, 50/60Hz or AC110~120V, 50/60Hz
(please leave message or Choose)
XLR, Balanced Inputs
Speakon and 1/4" Outputs
Front-to-Rear Airflow and Cooling Fan
Technical Specification :
◆ Large capacity Digital Switching Power Amplifier
◆ Automatic limit output, short circuit, overload, over temperature, power-on delay and other protection functions
◆ The power amplifier is equipped with a delay start system to protect the speakers from impact and damage
◆ The rear panel is equipped with dual channels,
◆ Balanced input interface
◆ SPEAKON output connector
◆ 483MM standard frame structure

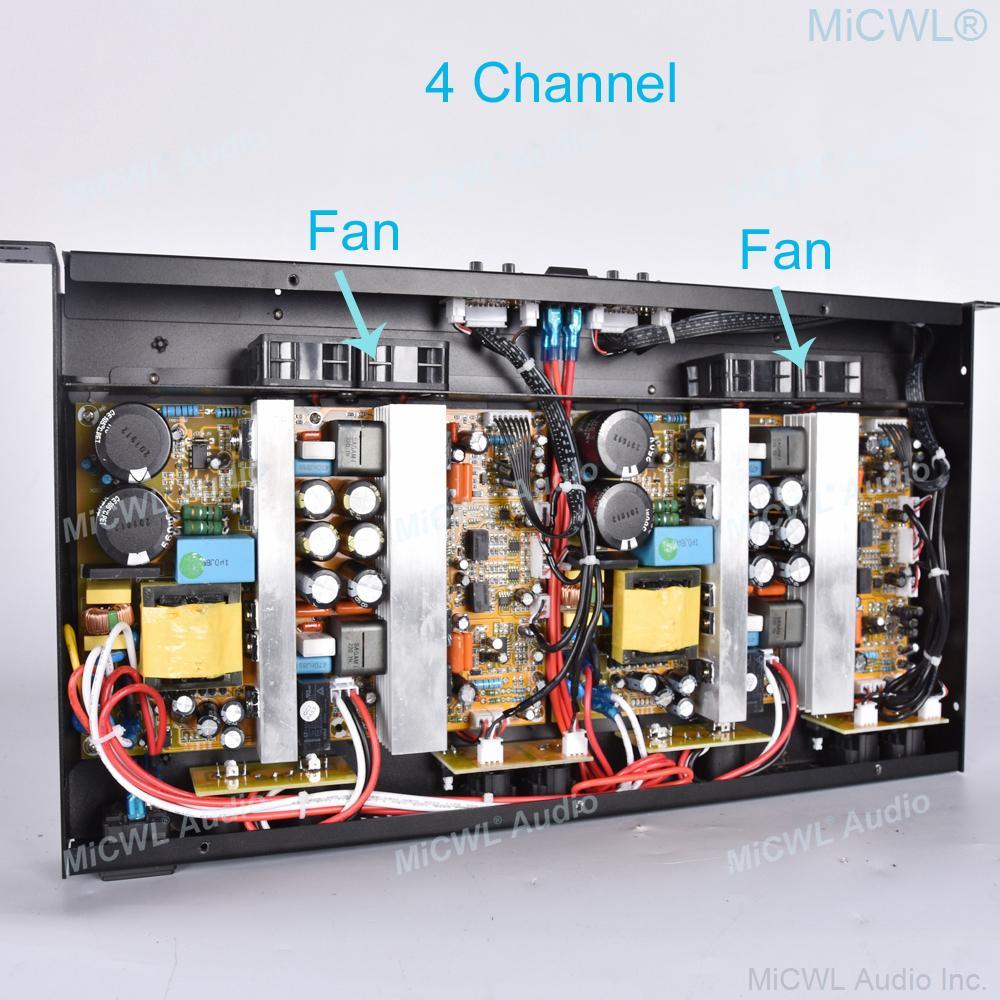

◆ The switching power supply of the power amplifier part has a separate cooling system
◆ The cooling fan is controlled by an advanced stepless variable speed circuit
◆ 1U design, light body, easy to carry and install
Output/Output (8Ω, 1kHz): 4x800W
Output/Output (4Ω, 1kHz): 4x1600W /
Distortion: <0.005%
S/N ratio: 112dB (A-weighting)
Damping coefficient: >1000
Conversion rate: 50V/us
Frequency Response/Frequency Response: 20Hz~20kHz +/-0.25dB
Total Distortion/Total Distortion: 1% (8Ω, at 600W)
Input Sensitivity/Input Sensitivity: +3dB * (0.775V)
Input Impedance: 10kΩ (electronically balanced/Balanced)
DC residual: <5mV
Connect terminal Connector:
Input (CH1-2 3-4): XLR input connector; Output (CH1-2 3-4): SPEAKON output; Power: AC power Input (CH1-2 3-4): XLR Input Connector; Output (CH1-2 3-4): SPEAKON Output; Power: AC power supply.
Indicator Lights:
Power indicator x 1 (green); input indicator x 2 (yellow); peak indicator x 2 (red); protection circuit action indicator x 1 (red) Power Indicator x 1 (Green), Input Indicator x 2 (Yellow ), Peak Indicator x 2(Red); Feedback Protect Indicator x 1(Red)
Power Supply Voltage:
AC220~240V, 50/60Hz / or AC110~120V, 50/60Hz (using internal jumper switch/Via inside jumping switch)
1/8 Rated Activity Consumed Power: 50W, 80W, 110W
Working Temperature Range: 0~50℃
Working Humidity Range:
Below 90%RH/Under 90% RH (But it can not be condensation)
How much Speaker can this amplifier drive:
6400W Versions Can Drive 800W or less 800W @ 8 Ohm Sound Speaker each Channel
- If your speaker is no more than 850 watts, this amplifier is enough to drive.
( 4 Channel can Drive 4 Unit 800W Speakers )
5200W Versions Can Drive 800W or less 800W @ 8 Ohm Sound Speaker each Channel
- If your speaker is no more than 850 watts, this amplifier is enough to drive.
( 4 Channel can Drive 4 Unit 800W Speakers )
Also have 1400W Super power each Channel Digital Power Amplifier for Choice (please check our ebay store or contact us)
1x Power Amplifier
1x Power Cable
Warranty：
One Year Warranty Covered by MICWL Audio Inc.
