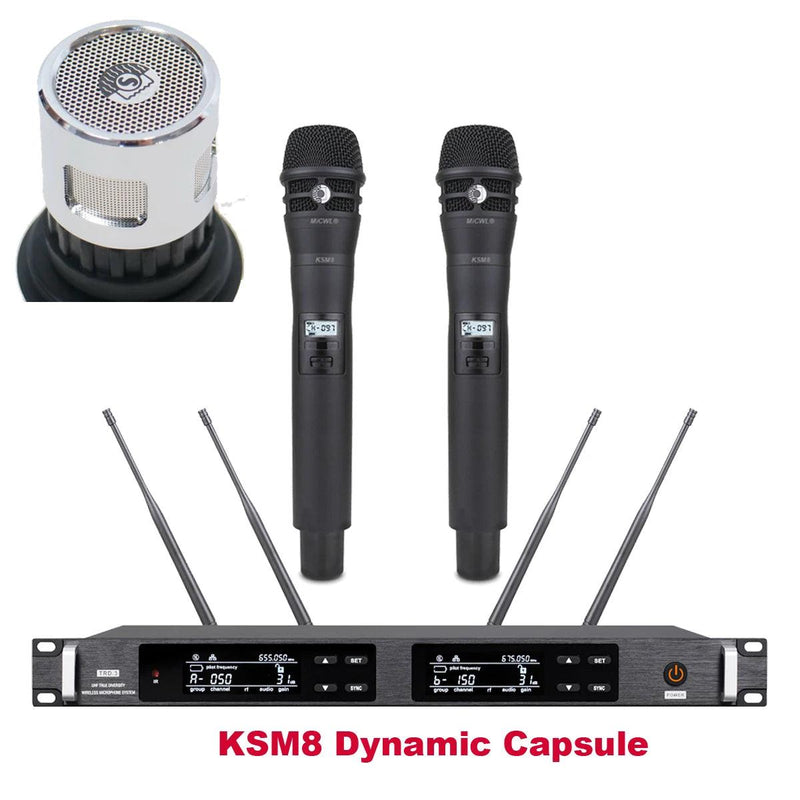

Authentic 2 Handheld Wireless Microphone System ULXD4 Receiver KSM8 Dynamic Beta87 KSM9 Condenser Stage Sing Voice Karaoke

ULXD4 Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.







The ULXD4 Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow.







Work environment :

500m Large unimpeded plaza/vocal concert ,

Complex harsh environment 200m Range (Rainy days are included)

1. True diversity, 2 Channel wireless handheld microphones, short circuit protection function; infrared automatic frequency matching, pilot frequency function Four antenna signal strengthened reception (multi-level high-frequency filter design has strong anti-interference ability and no noise)

2.1U standard chassis, metal panel, LCD liquid crystal display display working status, simple function operation.

3. High-fidelity audio transmission circuit, anti-drop, anti-vibration microphone core matching, sound clarity and high vocal reproduction.

4. Hand microphone power consumption: 110MA, using imported DC conversion boost circuit low power consumption and high efficiency, effectively extending the battery life. Radiant power: 16mW, use distance up to 500 meters in open environment. Complex harsh environment Rainy 200m Range.

5. Equipped with anti-switch impact function to ensure the protection of the output of the rear stage, and prevent the power amplifier and speakers from being impacted and burned.

6. The hand microphone has a battery level display, and the receiver also has a battery level display, which is convenient for remote monitoring of battery usage and working status at a glance.







ULXD4 Digital Receiver:

Frequency range: 640-690MHZ 2x 100 Channel

Maximum number of channels: 200

Bandwidth: 50MHz

Receiving sensitivity: -105dBm

S/N ratio: >70dB(A)

Distortion: <1% Audio output level: 8dBu max

External power supply: DC: 12-17V, 1A,

Oscillation mode: PLL phase locked loop

IF frequency: first IF: 110MHz, second IF: 10.7MHz

Antenna interface: TNC

Display mode: LCD

Sensitivity: -100dBm (40dB S/N)

Spurious suppression: >80dB

Audio output: unbalanced: +4dB (1.25V)/5KΩ

Balance: +10dB(1.5V)/600Ω

Supply voltage: DC12V Supply current: 450mA









Digital Handheld transmitter:

Frequency range: 640-690MHZ, 2x100 Channel

Bandwidth: 50MHz

Harmonic suppression: >55dBc

Maximum frequency deviation: +_48KHz

Frequency response: 40Hz-16KHz (-3dB)

S/N ratio:>70dB(A) Distortion:<1%

Power requirements: 2 AA type 1.5V batteries)
