Description
New Generation Portable Mini Original MiCWL Audio New design
4 Channel Power Bluetooth Mixing Sound Console
with Dual Channel 800W Power Amplifier
Maximum Output 1000 Watts
800 Watts @ 4 Ohms RMS (400W + 400W )
500 Watts @ 8 Ohms RMS ( 250W + 250W )
220V240V working
MSRP: $499.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

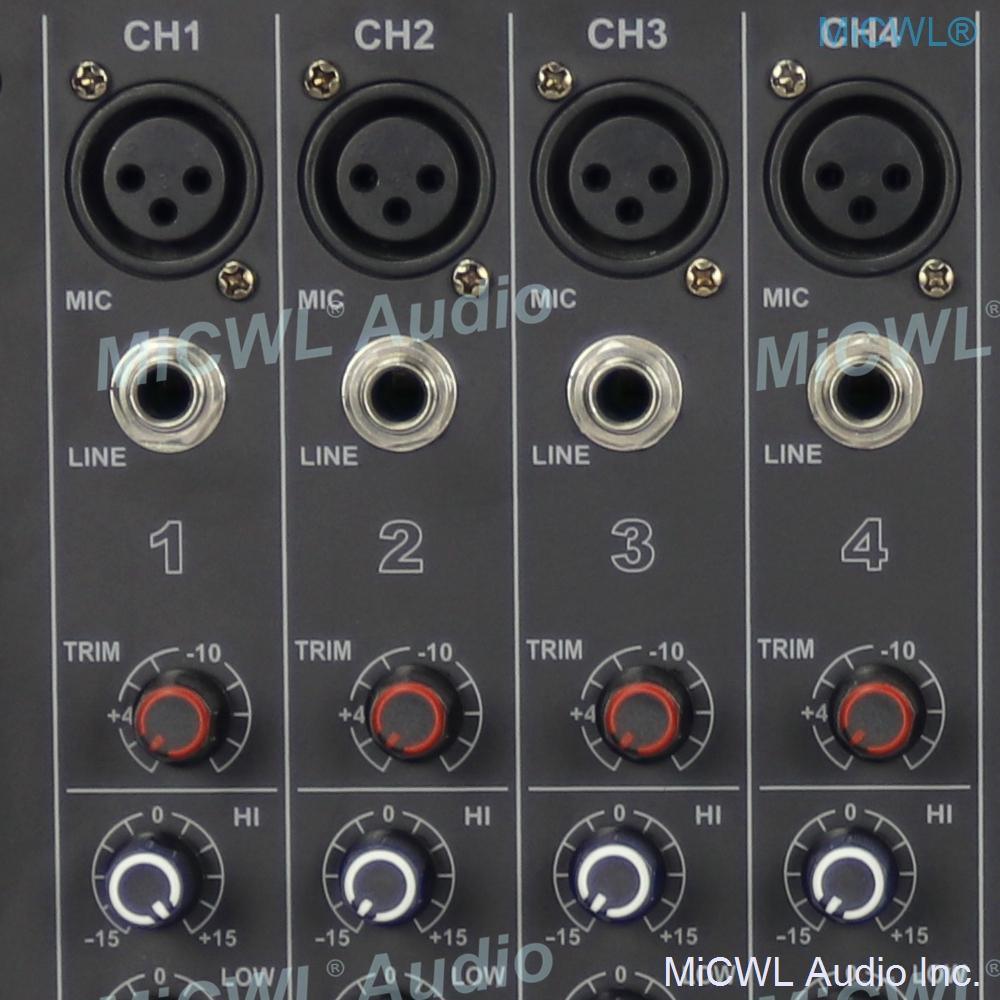

▼4 Channel microphone input
▼16 kinds of LCD digital display, digital effector
▼48V phantom power supply, suitable for professional recording condenser microphones
▼Five band master equalizer
▼Two-way (L/R) recording output
▼Send output all the way, return input all the way
▼A set of stereo mixed output

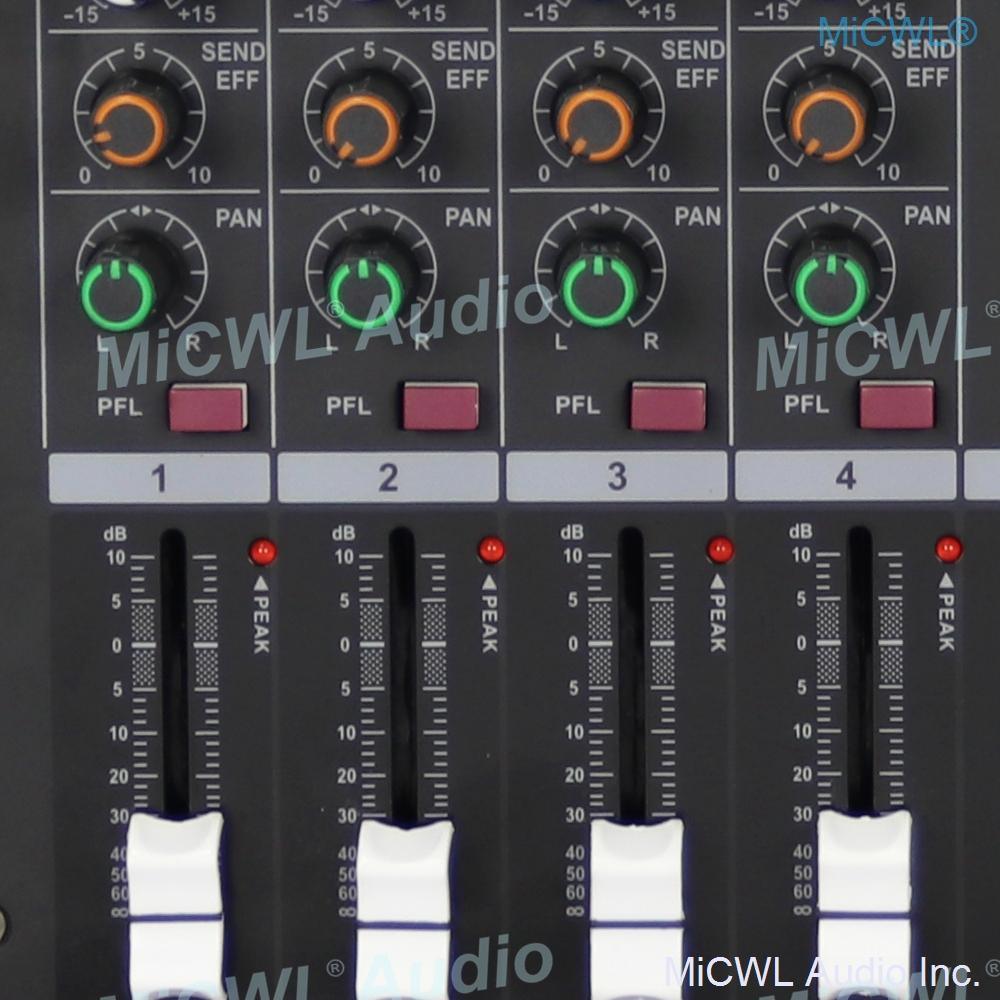

▼Each channel has a monitor switch
▼All the way high-fidelity high-power headphone output (1W)
▼Headphone monitoring function
▼High-definition large-screen MP3 player and can display lyrics
▼Bluetooth function
▼Voltage 220V-240v
High-performance microphone pre-amplifier with phantom power(+48V).
Built-in mute switching mode power supply.
High-performance three colors output level meter.
24-400Hz adjustable dual channels sub output.
With MP3, USB input players.
Exquisite color crystal buttons channel switch.
SMT automated technique for strict control the consistency of the products.
Dual Channel Power Amplifier:
Maximum Output 1000 Watts
800 Watts @ 4 Ohms RMS (400W + 400W )
500 Watts @ 8 Ohms RMS ( 250W + 250W )
TECHNICAL SPECIFICATIONS:
Frequency Response:20Hz-20KHz, ±0.5dB
THD+N: -30dB input to mix, mic gain 30dB,<0.007%
Mic Input Ein: MIC EIN@Max gain,150 ohms source impedance -128dB
Bus Noise: Noise(20Hz-20KHz measurement bandwidth)
Audio Mixing:MIX@MAX faders down<-85dB)
Crosstalk Between Channels:>96dB
Crossover Fader Position:>96dB
Aux Send Port:>86dB
Output Level Meter:L/R mix output level is 12 segment of LED indicator
Power: AC input 100-240V 50/60Hz
Power Consumption:<30W
1x 4 Channel Audio Mixer
1x Power Adapter Cable
1X Manual
Warranty：
One Year Warranty Covered by MICWL Audio Inc.
