Description
MiCWL Audio Inc.
CCS-600 MiCWL A350M-A05 Discussing Conferencing Meetings Solutions
Wired Conference Microphone System
A350M Conference host
A05 Built-in speaker Desktop Microphones Unit
1 U 19" Rack Mountable Design Host
(1 Host Support up to 60pcs table Mic, add 1 power extension host can with
60 tabe microphone. Max. support to 250pcs table microphones
please contact us if you need more President or Delegate Unit Microphones )
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
A350M Series Conference System Product Description:

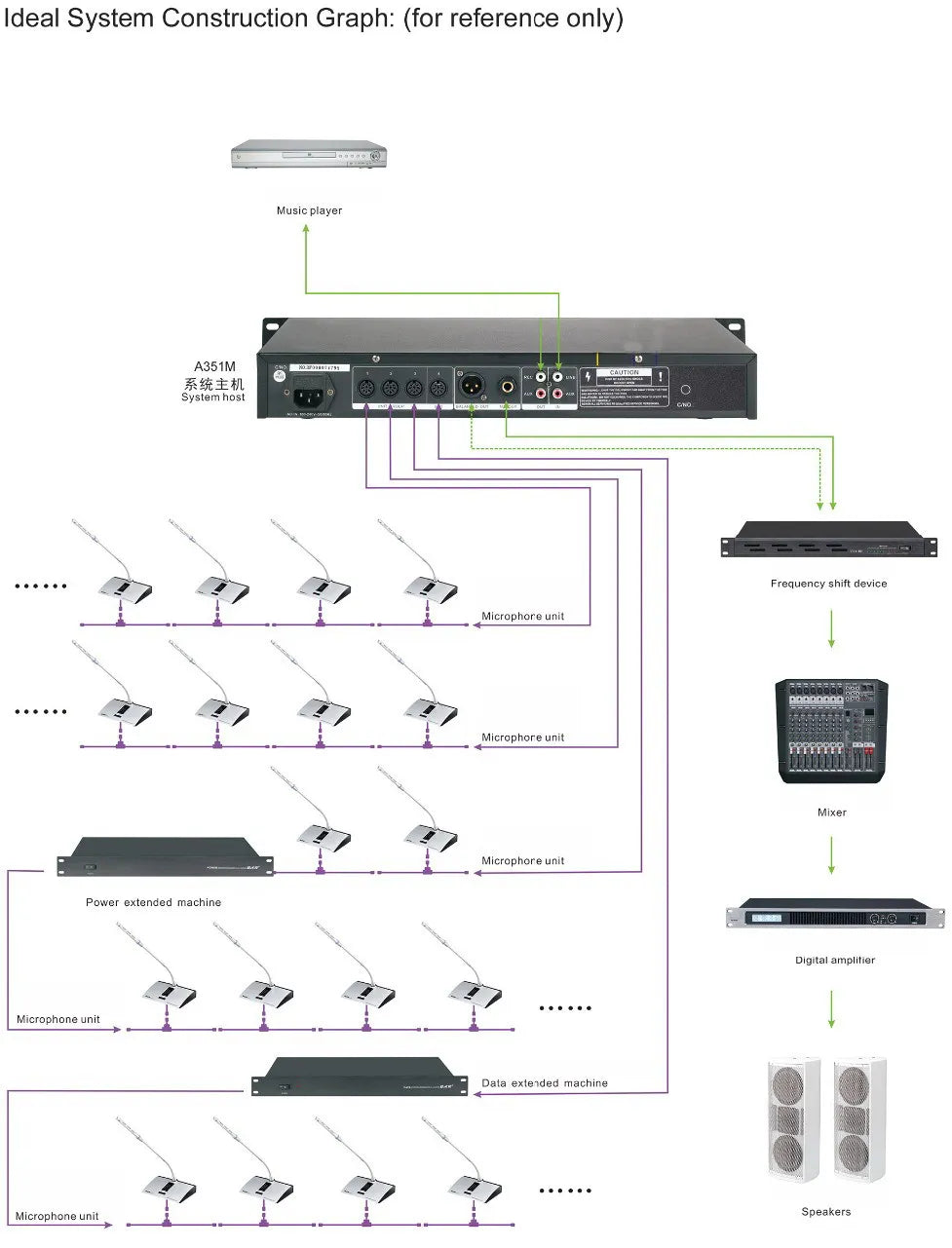

Convenient, hand-held conference system A350M series, without a central processor. A350M host is the core of the entire system. The system can accommodate up to 60 speakers, and the external PA system can be used for voice amplification. It has microphone auto-off function (microphone open, no sound input for more than 40 seconds, auto close). 2 meters long 8-P262 DIN connection cable, there is an auxiliary audio signal output and recording output, easy to connect other devices.
System Features:
1. goose neck design can be noted in the direction of need, easy to install quickly. The indicator light on the gooseneck microphone indicates the status of the microphone.
2. unique audio processing circuit to improve the clarity of the entire system.
3. hand-held cable connection, the microphone connection is simplified, the entire system installation on the required works and costs can be reduced.
4. expansion and change the configuration is easy, it is with 3 way Output, each channel way can connect 20 microphone. a host total can connect 60 conference microphone unit,
5. Chairman unit can use the priority button (Priority) to control the speaking order, control the atmosphere of the meeting.
6. with recording output connection recorder, all the recordings can be completely sound preservation, but also external sound amplification equipment.
Model: A350M host
Digital integrated circuit technology, low power consumption, high fidelity, very stable;
· Six speaking modes: Chairman-specific, first-in first-out, first-in, first-out, restricted speaking, open mode, overwhelming;
Four kinds of speakers can be selected, including: 1, 3, 6, N (optional). According to the speech mode is free to choose the number of speakers, and the design of intelligent identification of the number of functions;
* Start the self-test function, all the button lights flashing again, the connection status is not normal when the host beep;
· Intelligent power failure memory function, can remember the program running state; if the accident power, the power is restored to the last time set;
· With touch-button control panel, you can set the speech mode and the number of speakers;
· Equipped with audio balanced output, 6.3 output port, background audio input and output RCA interface, recorder interface;
· Each system host is recommended to connect up to 60 conference microphone units, with 4 series output, each channel can be up to 20, each plus a power extender can access more than 60 microphone unit
· Power supply: AC 100-250V ~ 50 / 60Hz
Rated voltage: 100Hz-12.5Hz
Output impedance: REC: 200Ω LINE: 200Ω
BALANCE: 300Ω
UNBALANCE: 400Ω
· Input impedance: LINE: 50KΩ PBIN: 50KΩ
· Signal to noise ratio: 100dB (1KHz THD1%)
· Chassis size: 480 × 44 × 220 mm
· Accessories: 10m 8Pin shielded wire
A01 Desktop Model: Chairman unit and Delegate unit Microphone
1, intelligent digital design control circuit, low power consumption.
2, high-fidelity single-directional condenser microphone core, sound reduction, high definition, low noise;
3, the chairman unit has the right to speak, may at any time to close the other attendance unit.
4, the chairman unit has approved the representative of the key to speak, like the right to show the right.
5, speaking mode, speaking state, speaking time.
6, excellent anti-mobile phone interference.
7, no noise touch switch design, flexible operation;
8, unique speaker network design Built-in speaker, can be used for conference loudspeakers and play conference background music.
9, touch switch volume control design, adjustable volume size.
10, the left side of the design has 3.5 audio output, listen to other attend the meeting to speak the content.
11, the conference unit to support hot-swappable function, comes with 2.1 m 8P cable; hand-handle connection mode, easy installation, flexible operation
Type: capacitance
Polar pattern: one direction
Frequency response: 50Hz-1700Hz
Sensitivity: -45±2dB@1KHz
Input voltage: DC 9V(powered by host)
Min input impedance: 1KΩ
S /N Ratio: 68dB(A)
Output connector: 8P terminal
Input and output wire: 2.1M 8P shielded line
Mic length:290mm
Size:170*130*68mm
Weight:1.1kg
(1) A350M Conference Wired Host,
(2) A05 Wired Desktop Gooseneck Microphones unit
- Built-in speaker President and Delegate Unit
(each table Microphones unit with 2.1m cable )
(3) 1x 1/4" plug Audio Cable,
(4) 1x AC-DC adapter ( 110V or 240V universal ),
(5) 10m cable
(6) 1x Manual.
Please contact us or our company website
if you need this system more information or need other system accessories
(Mixer, Speaker, Sound Frequency shift etc ... )
Warranty：
One Year Warranty Covered by MICWL Audio Inc.
