Description

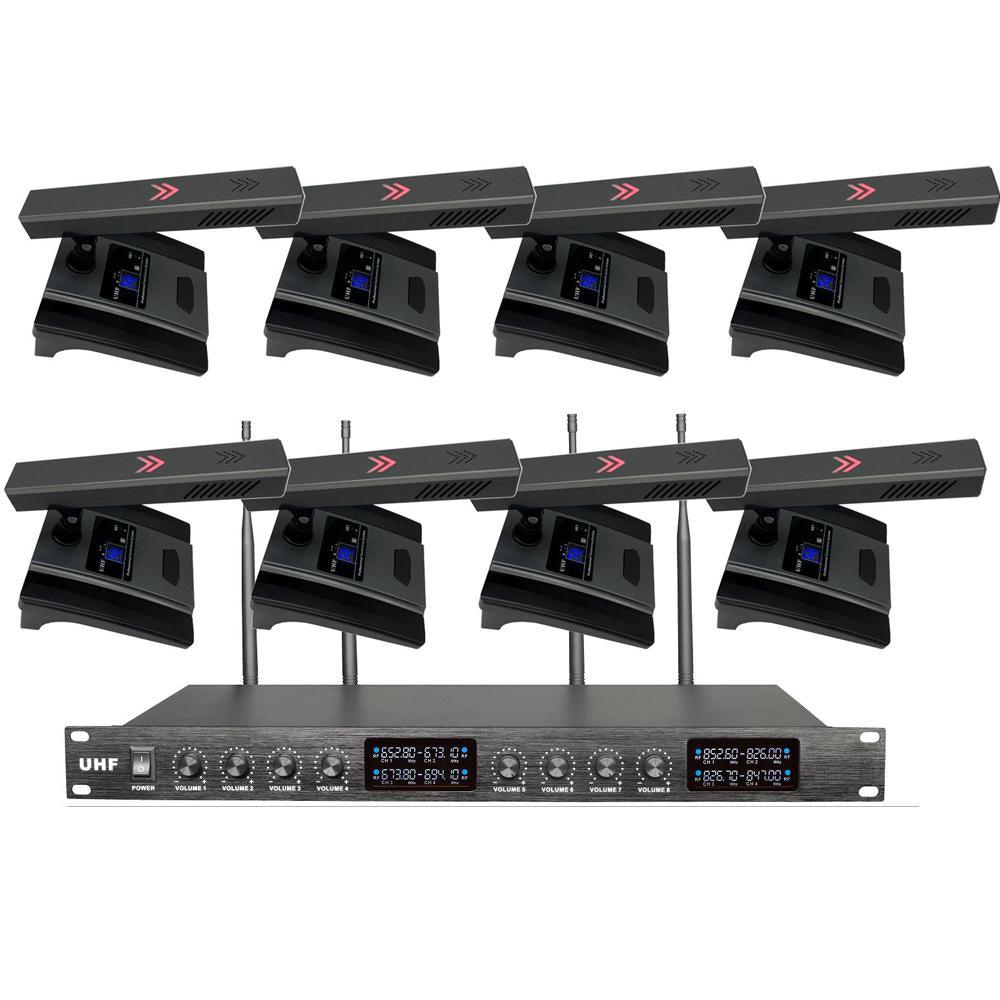

Original MiCWL S800 Wireless Microphone Mic System
(1 Host Support up to with 8 Microphone working at the same time )
MSRP: $999.00
19" 1U Host design
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
Conference Microphone Features:
1.Pro Wireless Transmission signal, the frequency range: 190MHz-280MHz , or 600-699MHz;
2. Eight-channel receive signal, fixed-frequency, A better sound quality and anti-jamming
3. The use of stable PLL digital phase-locked loop synthesis technology and intelligent digital lines, machine performance stability significantly improved;
4. Each channel is equipped with a unique ID number, enhanced anti-jamming function, support 2 stacked machine use (means 2 receivers and 16 transmitters can working at the same time);
5. Built-in high-efficient suppression of noise lines, anti-whistle function significantly; pickup distance of 30-50CM;
6. Receiver set the back of the two rubber receiving antenna to enhance the received signal, the appearance of generous decent;
7. On the back with two balanced output and a mixed non-balanced output, suitable for connecting a variety of external devices;
8. Flexible gooseneck microphone design, 360 ° all-round adjustment, microphone light ring instructions to speak the state.
9. Microphone power consumption of 80mA, the use of 9V battery power supply, can be used continuously for 12 hours;
10. Both the host and the transmitter are equipped with LCD screen to display the working status and so on
11. Use of distance: open environment: 100-150 m Complex environment: 50-100 meters
12. Applicable to all kinds of meetings and lectures.

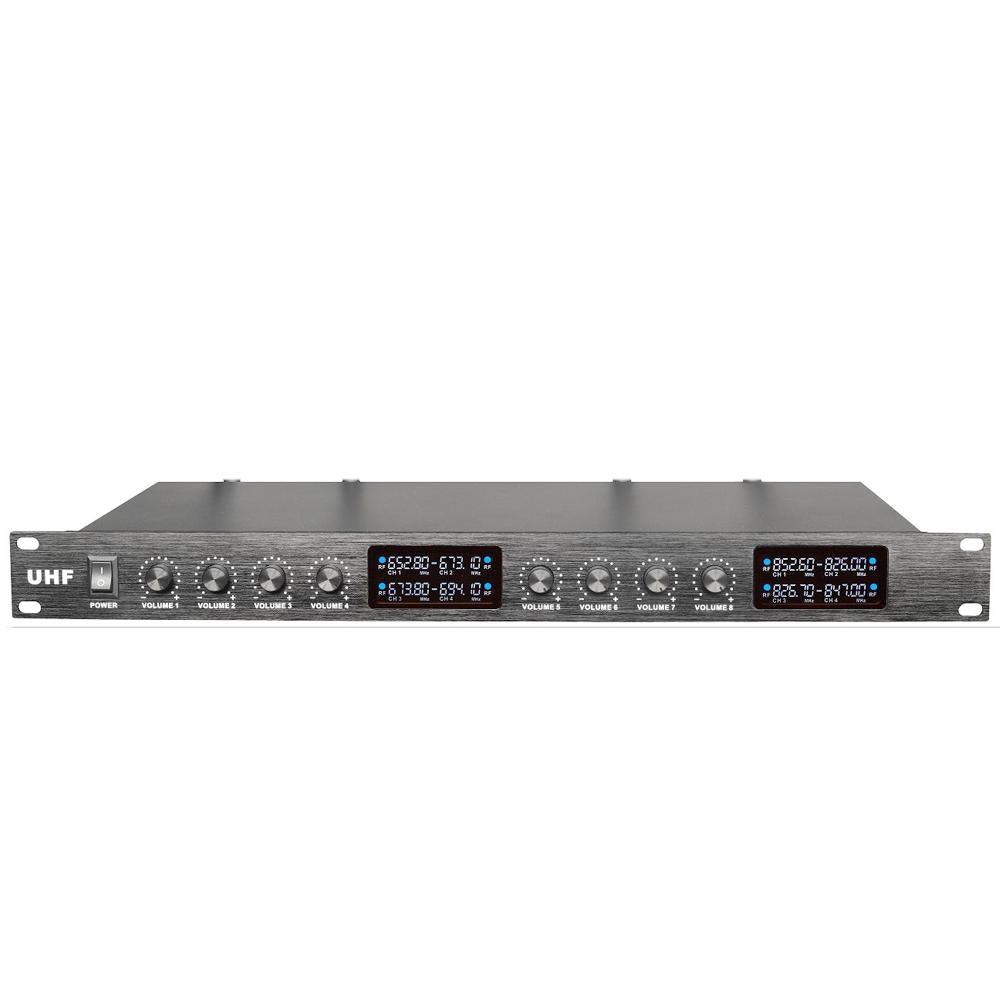

Host Unit description:
(Oscillation: ): (PLL syntheized)
(Carrier Ferquency Range):VHF190MHz~280MHz
/ or UHF 600-699MHz
/ or UHF 600-699MHz
(Frequency Stability):±0.001%
(Max.eviation Range):±50KHz
(Modulation Mode):FM
(S/N Ratio):>105dB
(T.H.D):<0.5%@1KHz
(Sensitivity):1.2/UV @S/N=12dB
(Power Supply):DC:12V~17V
(Audio Output):(Free standing )0~400mV (Mixed style )0~300mV
Table Conference Unit description:
(Power Supply): DC 3V
(2xAA battery)
(2xAA battery)
(Consume an electricity quantity):100mA
(Carry a frequency): VHF190MHz~280MHz
/ or UHF600-699MHz
/ or UHF600-699MHz
(Frequency stability):±25KHz
(S/N Ratio):>105dB
(F/N Ratio):>80dB
(Dynamic range):≥100dB
(Type):(capacitance)
(polar psttern):(One direction)
(Frequency Resonse):40Hz~20KHz
(Sensitivity):-47±3dB@1KHz

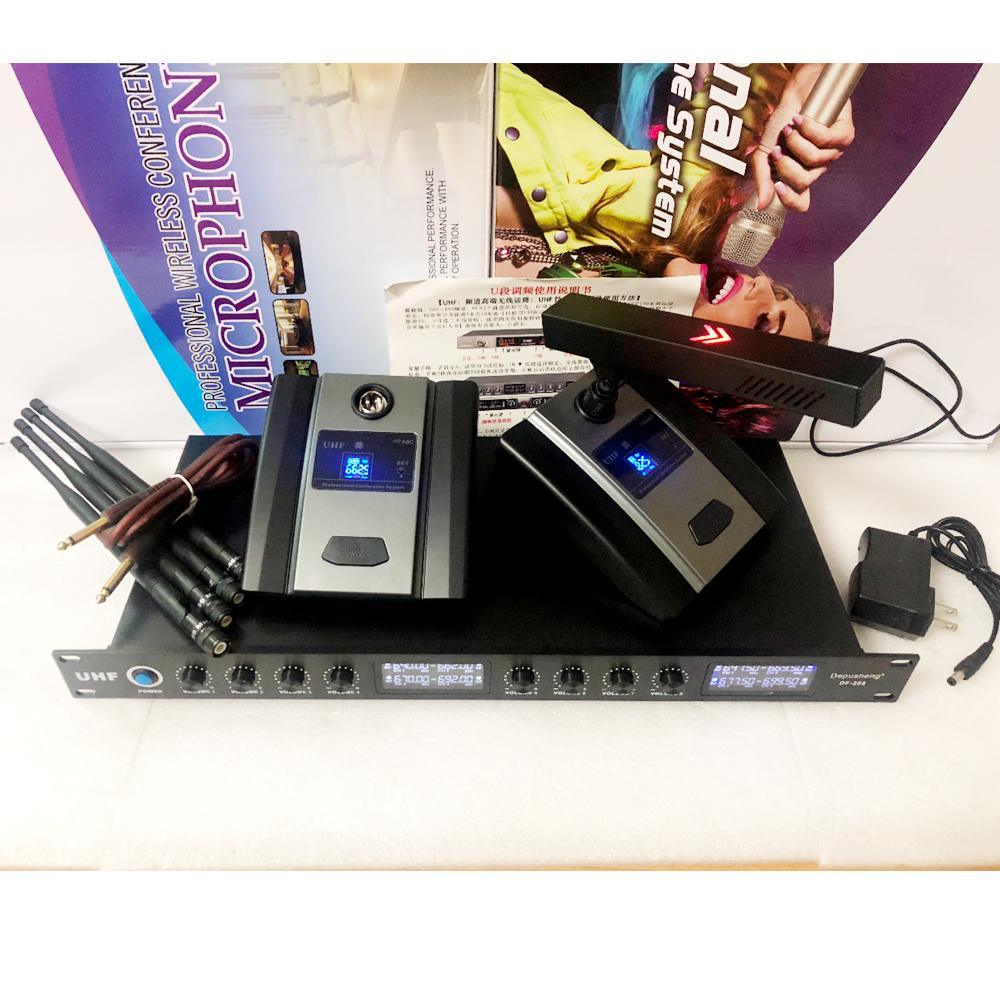

(1) 8 Channel Receiver ,
(2) 8 Conference microphones and 8 Conference Base.
(3) AC-DC adapter ( 110V or 240V universal )
(4) Batteries and manual.
(AA battery not include, due to air transport, hope all Buyer understand.)
Warranty：
One Year Warranty Covered by MICWL Audio Inc.
